Garage Structural Repair

This project addressed a structural failure above a double garage door that caused roof sagging, water intrusion, and interior damage. The repair required temporary structural support, beam replacement, roof system correction, and full restoration of the affected area.

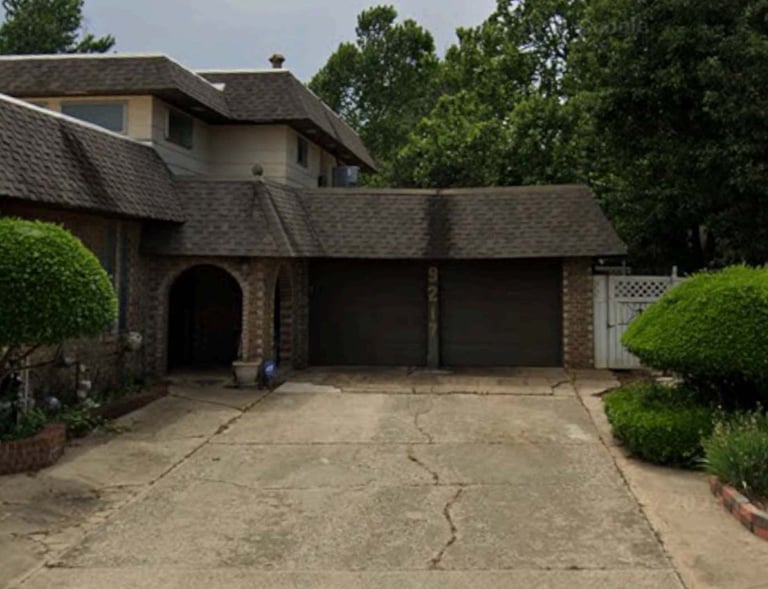

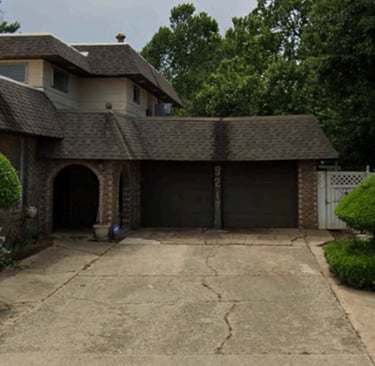

Before

During

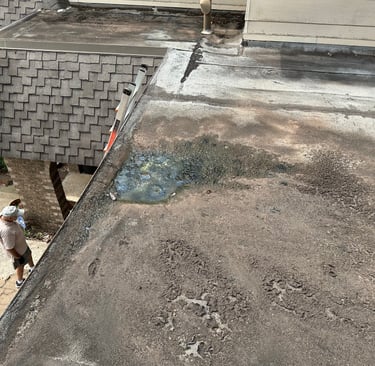

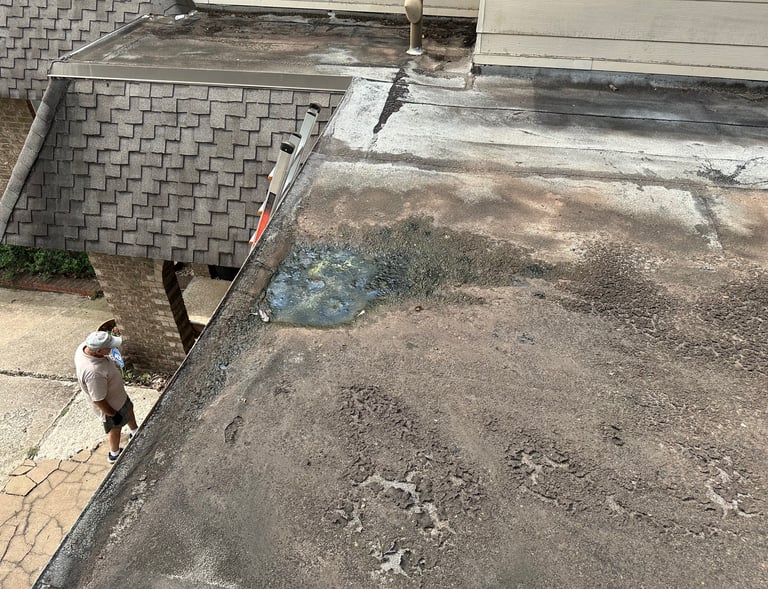

The original double 2×12 header had failed, allowing the roof structure to sag. This caused water to pool on the flat roof and eventually leak into the garage, resulting in structural and interior damage.

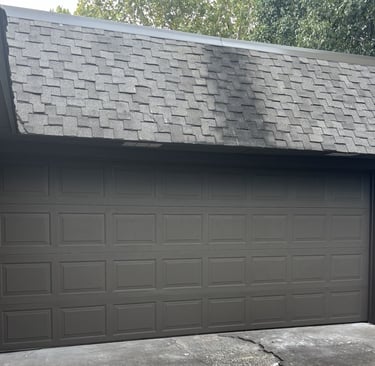

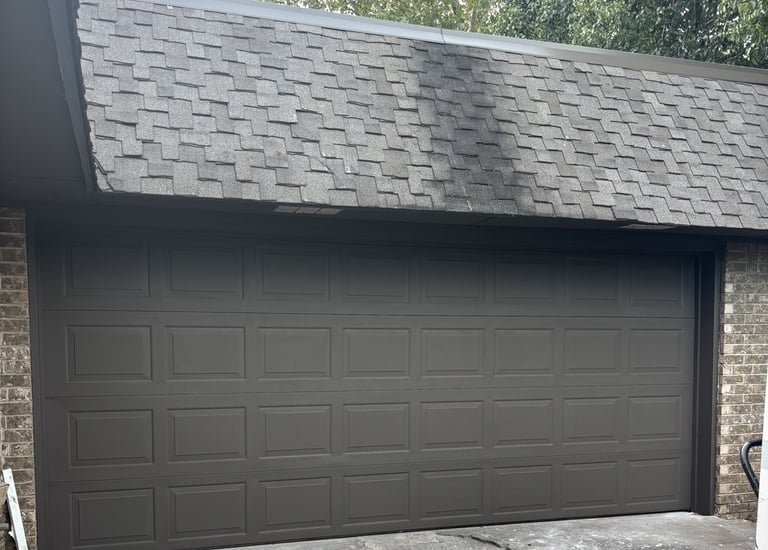

After

The roof structure was carefully raised back to level before temporary support walls were constructed to stabilize it. The failed header was then removed and replaced with a new double LVL beam, along with truss reinforcement and replacement of damaged roof decking.

This project demonstrates the importance of addressing structural failures correctly—temporary fixes would not have resolved the underlying issue or prevented continued damage.

If you're dealing with sagging, structural damage, or water intrusion, call to address the problem correctly before it worsens.

Scope & Project Highlights

The structure was fully restored with proper load support, corrected roof drainage, and new roofing. Interior damage was repaired, resulting in a stable, functional, and long-term solution.

This project required coordinated structural, roofing, and interior repairs to fully correct the underlying failure and restore the space.

Key improvements included:

• Removal of failed double 2×12 header

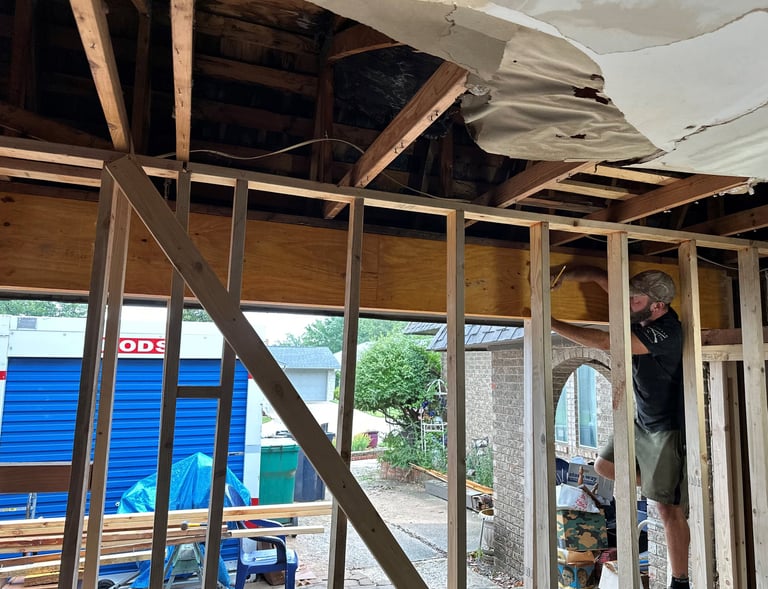

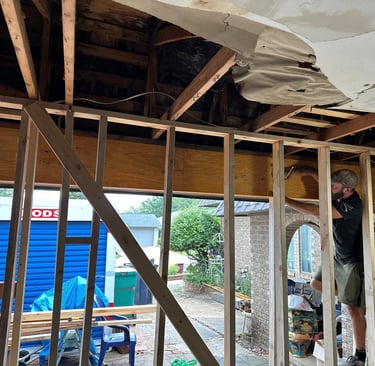

• Installation of double LVL beam for proper structural support

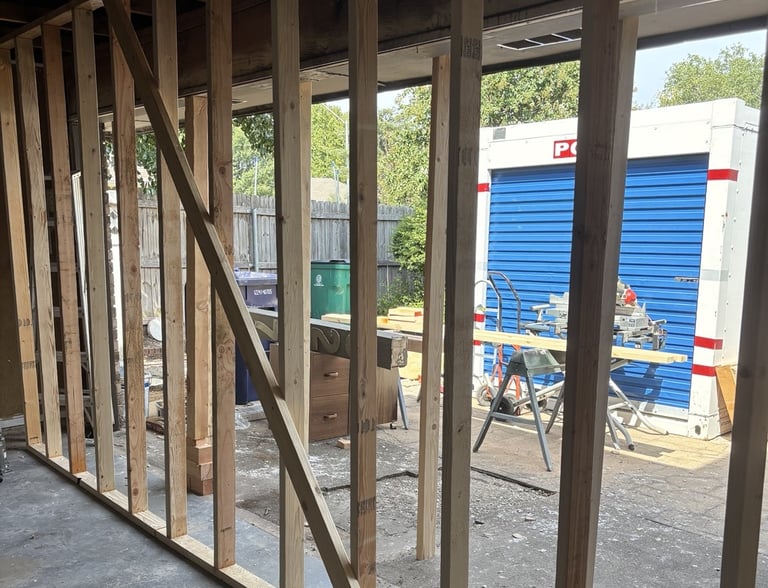

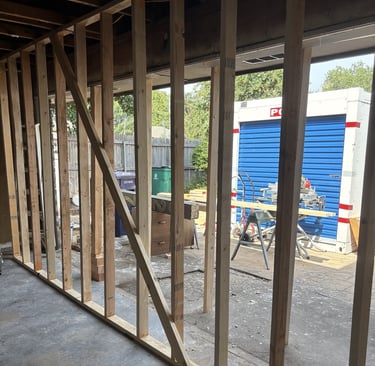

• Temporary wall construction to support roof during repair

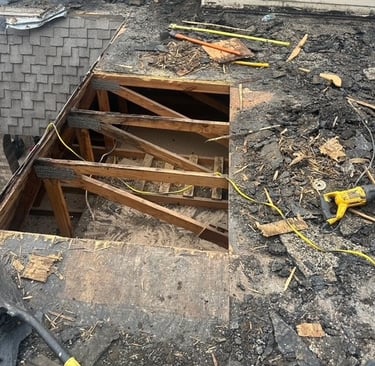

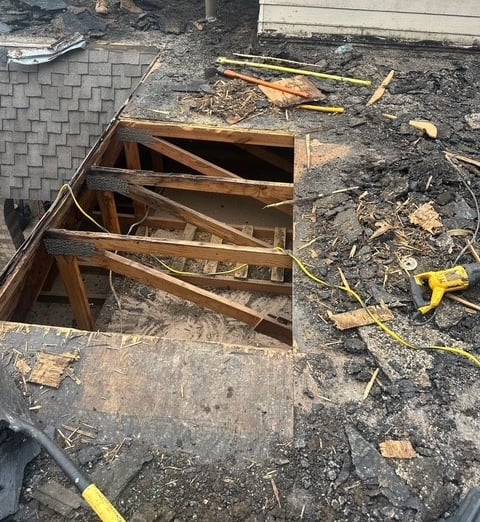

• Truss repair and structural reinforcement

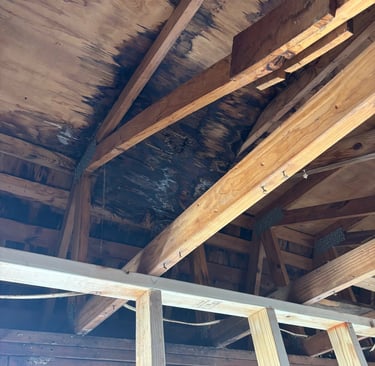

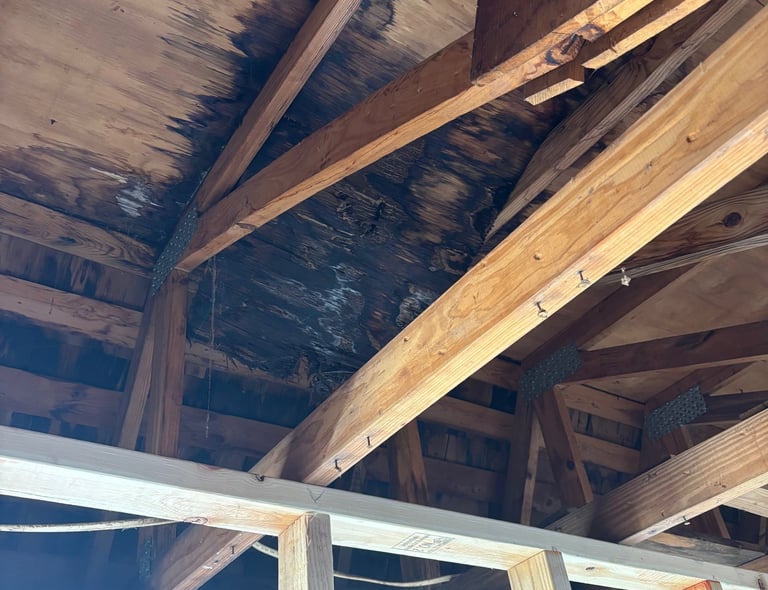

• Replacement of damaged roof decking

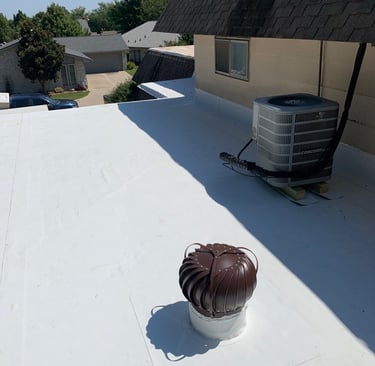

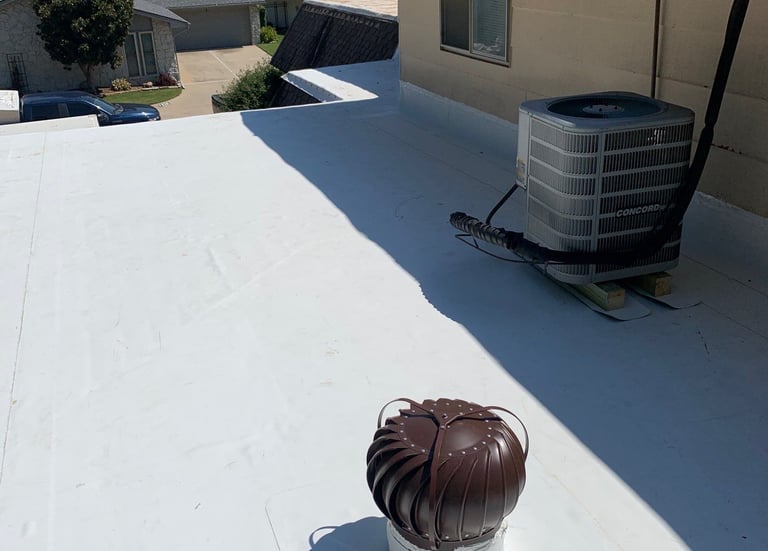

• Installation of new TPO roofing system
• Removal and reinstallation of garage door system and opener

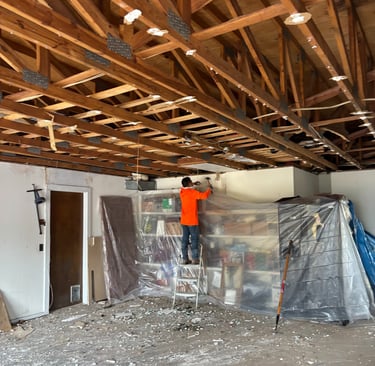

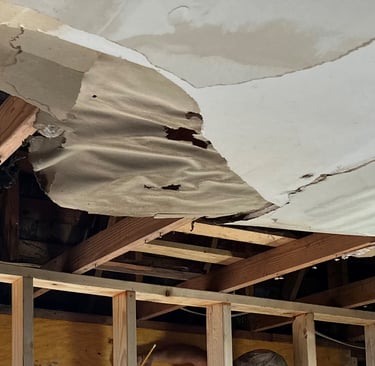

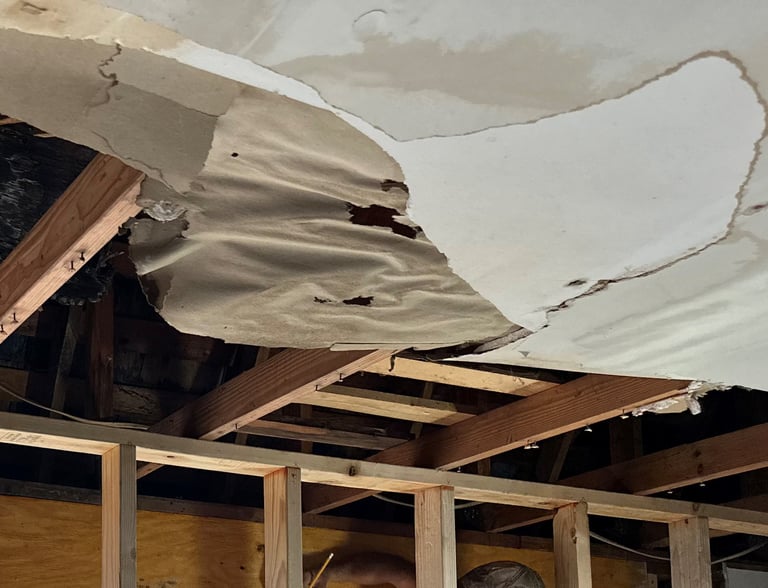

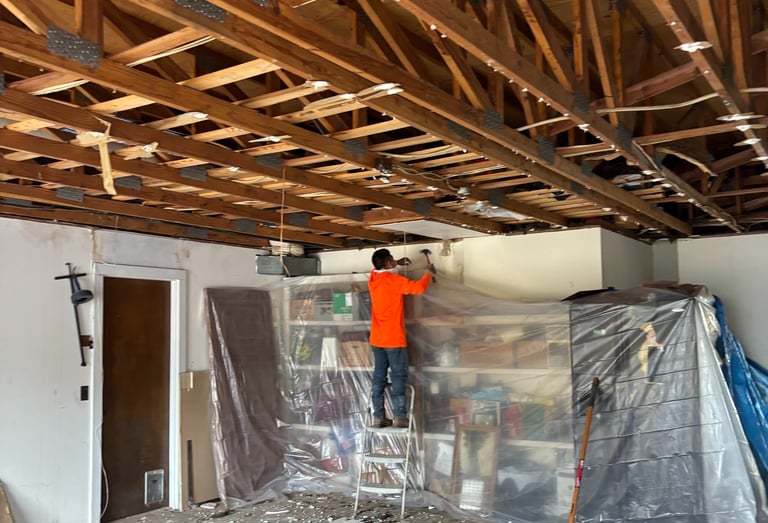

• Replacement and finishing of drywall ceiling

Each step was completed to address the root cause of the failure and ensure long-term structural performance.
